PULSE RX 5700XT 8G GDDR6

  • GPU: Boost Clock: Up to 1925 MHz
  • Memory:   8GB/256 bit GDDR6. 14 Gbps Effective
  • Stream Processors: 2560
  • 4K@120Hz
  • Dual-X Cooling Technology
Related Product:

PULSE RX 5700 8G GDDR6

2nd Gen 7nm, Up to 1750 MHz, 8GB GDDR6, Dual-X Cooling

Learn More
Explore all PULSE

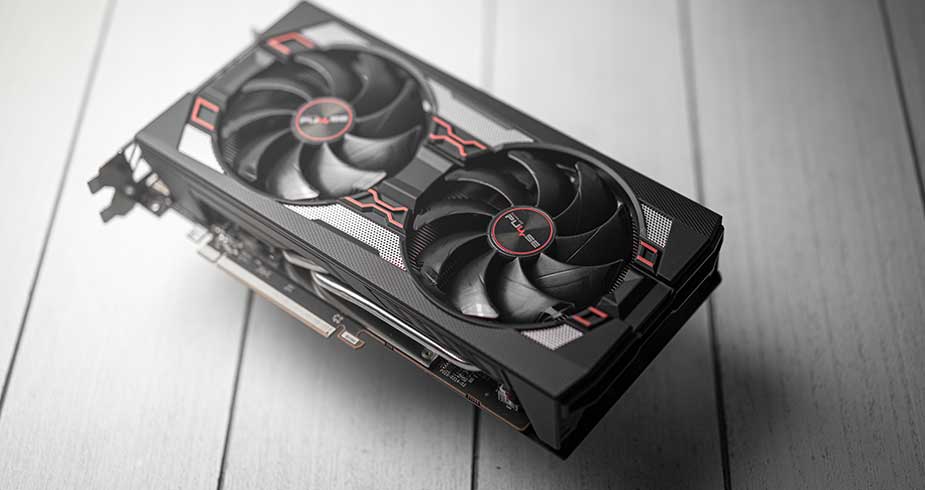

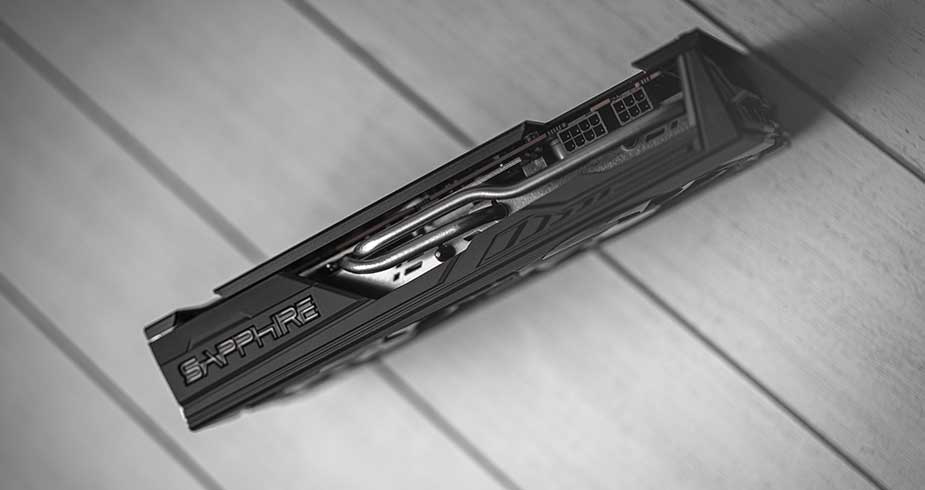

SAPPHIRE PULSE RX 5700 XT

The SAPPHIRE PULSE RX 5700 XT offers great performance at the affordable price point that every gamer needs. With quality components and a robust digital power design, the PULSE RX 5700 XT delivers exceptional 1440p performance and high-fidelity gaming powered by AMD’s new extreme RDNA architecture. Its finely-tuned Dual-X Cooling Technology not only keeps the GPU, memory and VRM components cool, but also at a very low noise level. The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out, and it also helps cool your card by increasing heat dissipation. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Power Fuse are all readily available to keep your GPU running smooth and silent. Get ready to experience next-level gaming performance and welcome the PULSE RX 5700 XT as the new integral heart of your PC!

IMMERSIVE GAMING DYNAMICS

1440P PERFORMANCE

  • Forza Horizon 4
  • Gears of War 5
  • Sea of Thieves
  • Wolfenstein II: The New Colossus
  • Hellblade Senua's Sacrifice
  • Prey

BEND THE RULES

 High-Fidelity Gaming

up to 1925 Mhz Boost clock

8GB 256bit GDDR6

7nm FinFET

2560 Stream Processors

Dual-X Cooling Technology

Fan Quick Connect

SAPPHIRE PULSE Graphics Card FEATURES

Explore all the incredible features that come with the SAPPHIRE PULSE RX 5700 XT Graphic Card. We've split our features into 3 categories so you can easily see all the features we pride ourselves in designing to create the best gaming experience possible for you



Explore More

COOLTECH

Our superior cooling technology to keep your temperatures low at a high framerate

  • Intelligent Fan Control
  • Precision Fan Control
  • Robust VRM Cooling
  • Robust Memory Cooling
  • Dual-X Cooling Technology

DNA

Our core parts that elevate the life of our products through quality, robustness & reliability

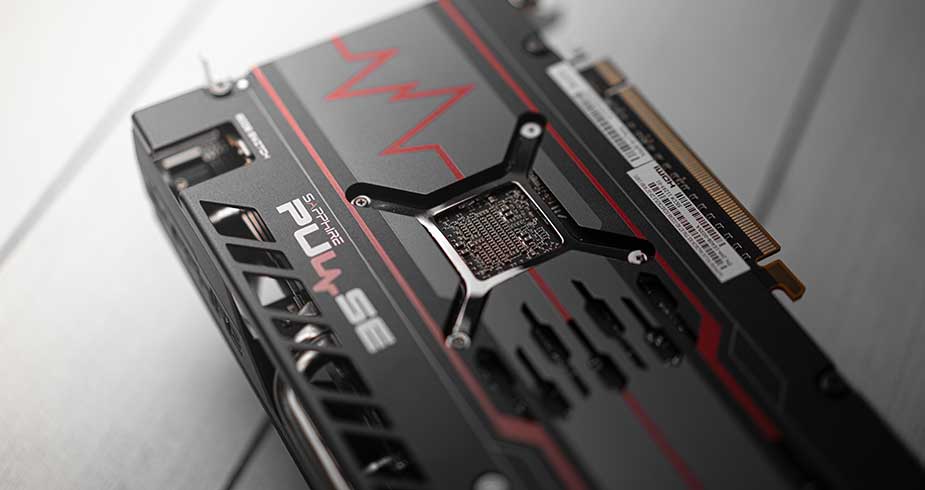

  • Backplate (Tough Metal Backplate)
  • Two-Ball Bearing
  • Fan Quick Connect
  • Fuse Protection
  • Dual BIOS

PLUS

All of the extra features that make our SAPPHIRE Boards so special and unique

  • Power Design
  • Fan Check
  • Free Flow
  • TriXX Supported
  • TriXX Boost

Download

TriXX

Key Features:

  • Dash Board: Hardware and software features of the graphics card.
  • Hardware Monitor: The TriXX Hardware Monitoring allows gamers to monitor in real time the various data points of the graphics card. This feature assists with overclocking and even trouble shooting.
  • TriXX Boost: TriXX Boost enables gamers to run games at a higher FPS by reducing the rendering resolution and up scaling the final output image by integrating Radeon Image Sharpening.
  • Fan Health Check:  TriXX Fan Health Check utility will test the fans to ensure they are performing properly in conjunction with our Quick Connect fan solution; if there is a problem the solution is quick and easy to fix.
  • NITRO Glow: Working with the on board MCU on NITRO+ Series, NITRO Glow utility has been significantly expanded and improved in the new NITRO+ products.**  NITRO GLOW now supports 8 modes on the new NITRO+ RX 5700 XT including new modes such as Audio Visualization and external RGB source.
  • TriXX BIOS Switching: Exclusive on NITRO+ RX 5700 Series, users are able to switch between the primary bios setting and secondary bios secondary bios setting in TriXX 7.0.

* Fan Health Check is supported on the NITRO+ Graphics Card Series Products ONLY.

** NITRO Glow on TriXX ver 7.0 currently does not support SAPPHIRE NITRO+ RX VEGA 64, NITRO+ RX VEGA 56, and NITRO+ RX 500 Series Graphics Cards. Users are advised to use TriXX Ver 6.8 to operate the NITRO GLOW feature on these graphics cards.

SAPPHIRE will fix this issue in the next version of TriXX.

Version 7.0
File Size 2 MB
Release Date 9/10/2019
Download

Specifications

GPU

Radeon™ RX 5700 Graphics
2nd Gen 7nm GPU
RDNA Architecture

Engine Clock

  • Boost Clock: Up to 1925 MHz
  • Game Clock: Up to 1815 MHz
  • Base Clock: 1670 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2560

Memory Size/Bus

8GB/256 bit GDDR6

Memory Clock

14 Gbps Effective

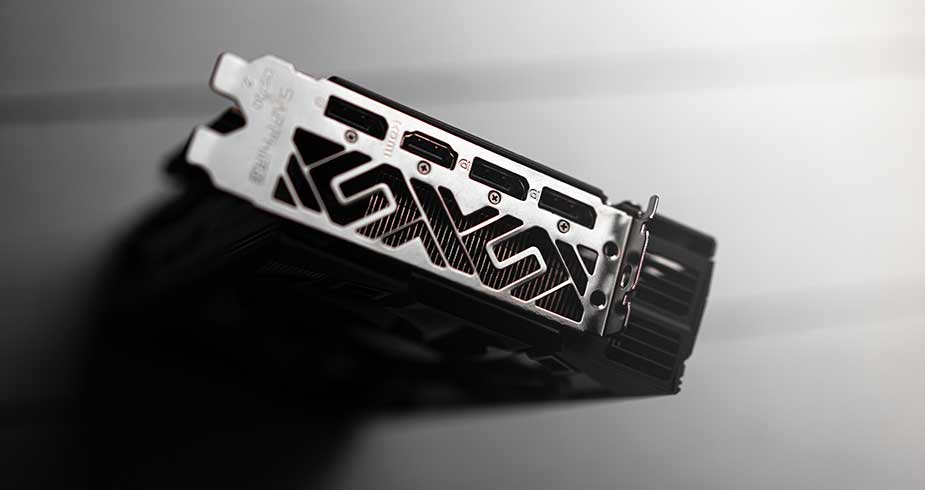

Displays

Maximum 4 Displays

Resolution

HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz

Interface

PCI-Express 4.0

BIOS Support

  • Dual UEFI

API

  • Vulkan®
  • OpenGL® 4.6
  • OpenCL 2.0
  • DirectX® 12
  • Shader Model 6.4

Game Index

Extreme 1440P

Sapphire Features

  • Power Design
  • Fan Check
  • Free Flow
  • TriXX Supported
  • TriXX Boost
  • Intelligent Fan Control IV
  • Precision Fan Control
  • Robust VRM Cooling
  • Robust Memory Cooling
  • Dual-X Cooling Technology
  • Tough Metal Backplate
  • PCB Layers
  • Two-Ball Bearing
  • Fan Quick Connect
  • Fuse Protection
  • Dual BIOS

AMD Features

  • RDNA Architecture
  • 2nd Gen 7nm GPU
  • GDDR6 Memory
  • Power Efficiency
  • PCI Express 4.0 Support
  • Video Streaming up to 8K
  • Display Port 1.4 (HBR3) / DSC
  • Radeon™ Software
  • Radeon™ Boost
  • Radeon™ Image Sharpening
  • Radeon™ Anti-Lag
  • AMD FidelityFx
  • Async Compute
  • Radeon™ Rays Audio + True Audio Next
  • Radeon™ FreeSync™ 2 HDR
  • Radeon™ VR Ready Premium


Cooling

  • Dual-X Cooling
  • Dual Fan
  • Two-Ball Bearing

Form Factor

2.3 slot, ATX
Dimension: 254 x 135 x 46.5 (mm)

Power Consumption

  • 241W

OS

Windows®  10, Windows®  7 64bit operating system required

System Requirement

  • Recommended 650 Watt Power Supply (Minimum 600 Watt Power Supply).
  • 1 x 8-pin Power Connector.
  • 1 x 6-pin Power Connector.
  • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
  • Minimum 8GB of system memory. 16GB recommended.
  • Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
  • Colors of PCB or other components may differ from those illustrated.
  • SAPPHIRE reserves the right to update or revise specifications without prior notice.
  • All trademarks and logos are acknowledged as the property of their respective holders.
